Product Description

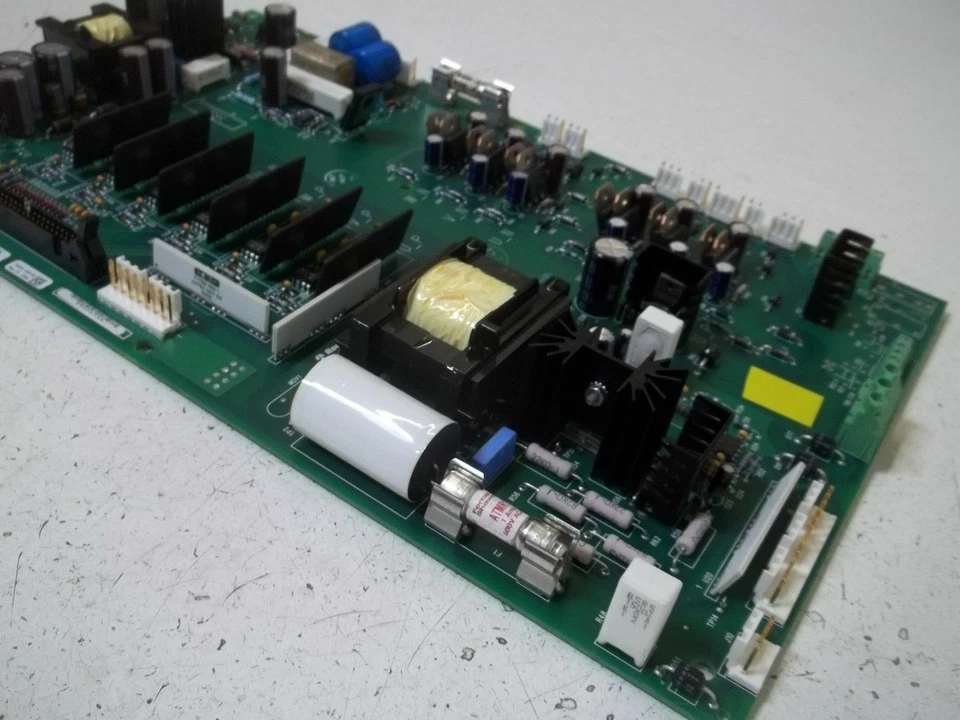

Brand Allen Bradley MPN 1336-BDB-SP50A Country/Region of Manufacture United States Product Type Drive Board The Allen-Bradley 1336-BDB-SP50A Series A is a high-performance variable frequency drive (VFD) designed to control three-phase AC motors with precision and reliability. Part of the 1336 Plus II series, this drive offers a power rating suitable for demanding industrial applications. It features advanced motor control capabilities, including adjustable speed and torque control, and is designed to enhance operational efficiency while providing protection and diagnostics for the connected motor. Its rugged construction and user-friendly interface make it a versatile solution for a range of motor control needs.

Technical Specifications

• Model: 1336-BDB-SP50A
• Series: A
• Type: Variable Frequency Drive (VFD)
• Power Rating: Typically 50 HP (37 kW)
• Voltage Rating: 460V AC
• Current Rating: 75A (verify specific current rating based on model)
• Control Type: Vector control, V/Hz (Volts per Hertz) control
• Enclosure Rating: IP20 (indoor use; verify specific protection ratings as needed)
• Display: Keypad with alphanumeric display (for programming, diagnostics, and monitoring)
• Communication Protocols: Typically supports RS-232/RS-485 (verify specific protocols based on model)
• Operating Temperature Range: 0°C to 50°C (32°F to 122°F)
• Dimensions: Standard size for panel mounting (verify specific dimensions based on model)
• Certification: UL, CE (verify specific certifications as needed)
