Product Description

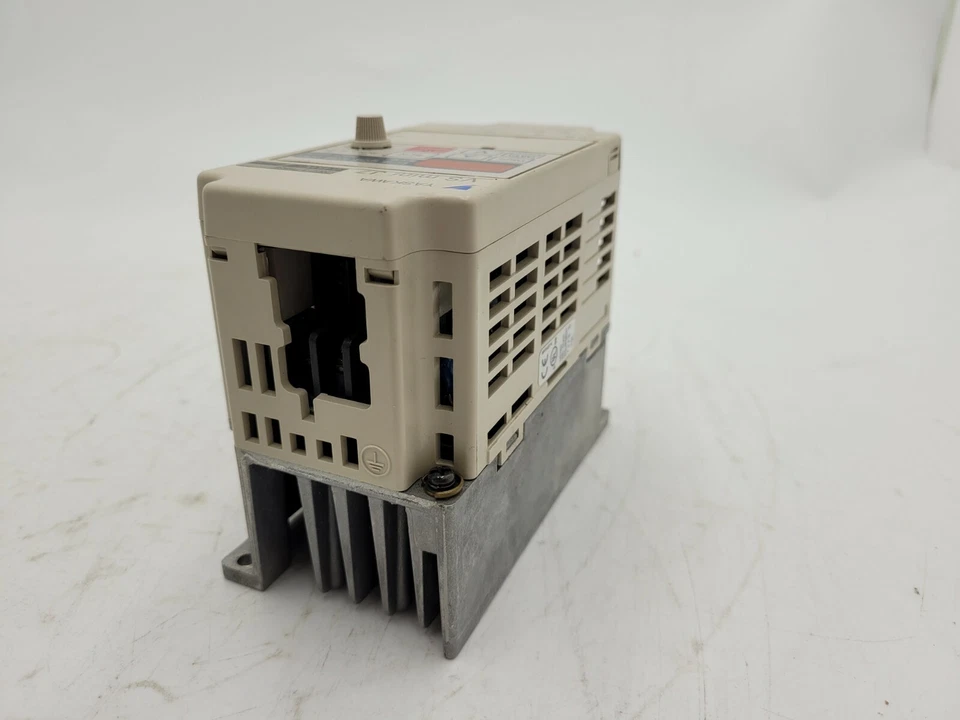

The Yaskawa CIMR-J7AA20P4 is a compact and high-performance AC inverter drive from the VS Mini J7 series, designed to provide precise control and efficient operation for three-phase motors with a rated output of 400W. Engineered for versatility and ease of integration, this inverter drive excels in applications requiring accurate speed and torque control, ensuring smooth operation and improved energy efficiency. The J7 series is recognized for its advanced vector control technology, which enhances motor performance and responsiveness. With its robust design, the CIMR-J7AA20P4 is suitable for various industrial automation tasks, particularly in environments where space is limited but performance needs to remain high.

Technical Specifications

• Model: CIMR-J7AA20P4
• Type: AC Inverter Drive (Variable Frequency Drive)
• Rated Output Power: 400W (0.4 kW, 0.53 HP)
• Rated Voltage: 200-240 V AC, Three-phase
• Rated Current: 2.0 A
• Power Supply Frequency: 50/60 Hz
• Control Method: Advanced vector control (also supports V/f control)
• Cooling Method: Natural air cooling
• Protection Rating: IP20 (suitable for indoor use)
• Mounting: Panel mount
• Operating Temperature Range: 0 to 40°C (32 to 104°F)
• Dimensions: Approximately 130 mm x 100 mm x 150 mm (5.1 in x 3.9 in x 5.9 in)
• Weight: Approximately 1.8 kg (4.0 lbs)
• Communication Protocols: Standard RS-485, with optional communication boards for additional protocols (e.g., Modbus, Profibus)
